产品详情：

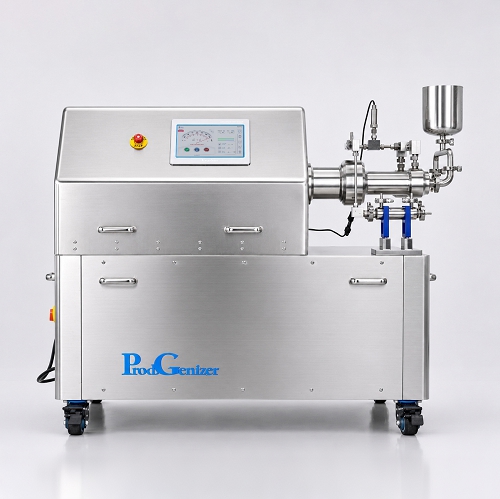

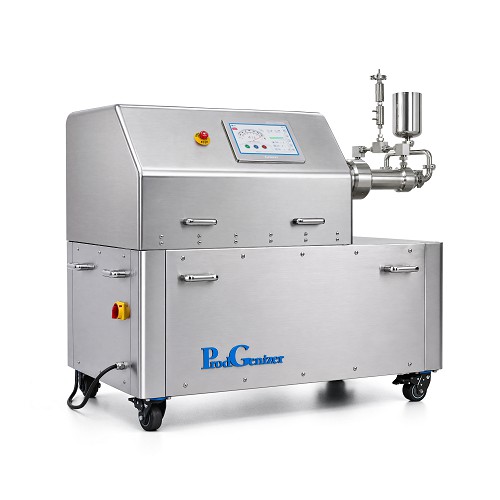

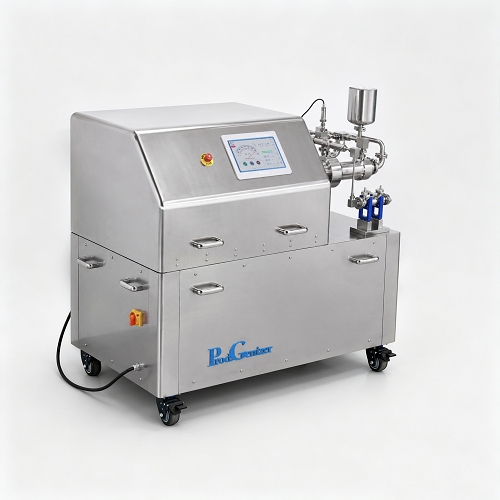

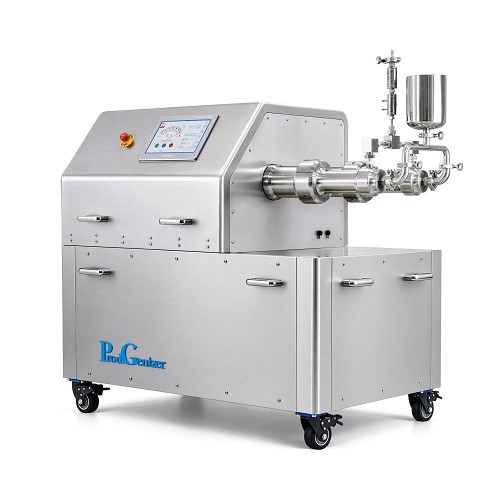

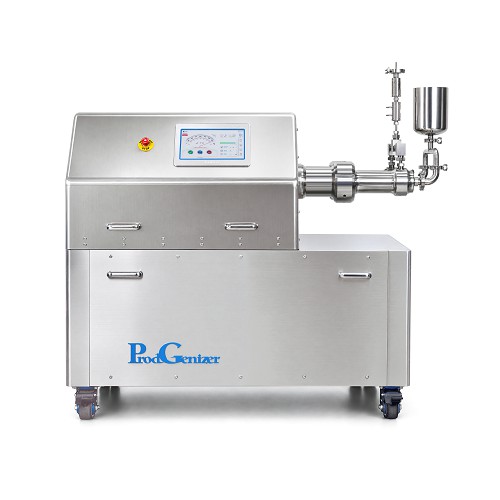

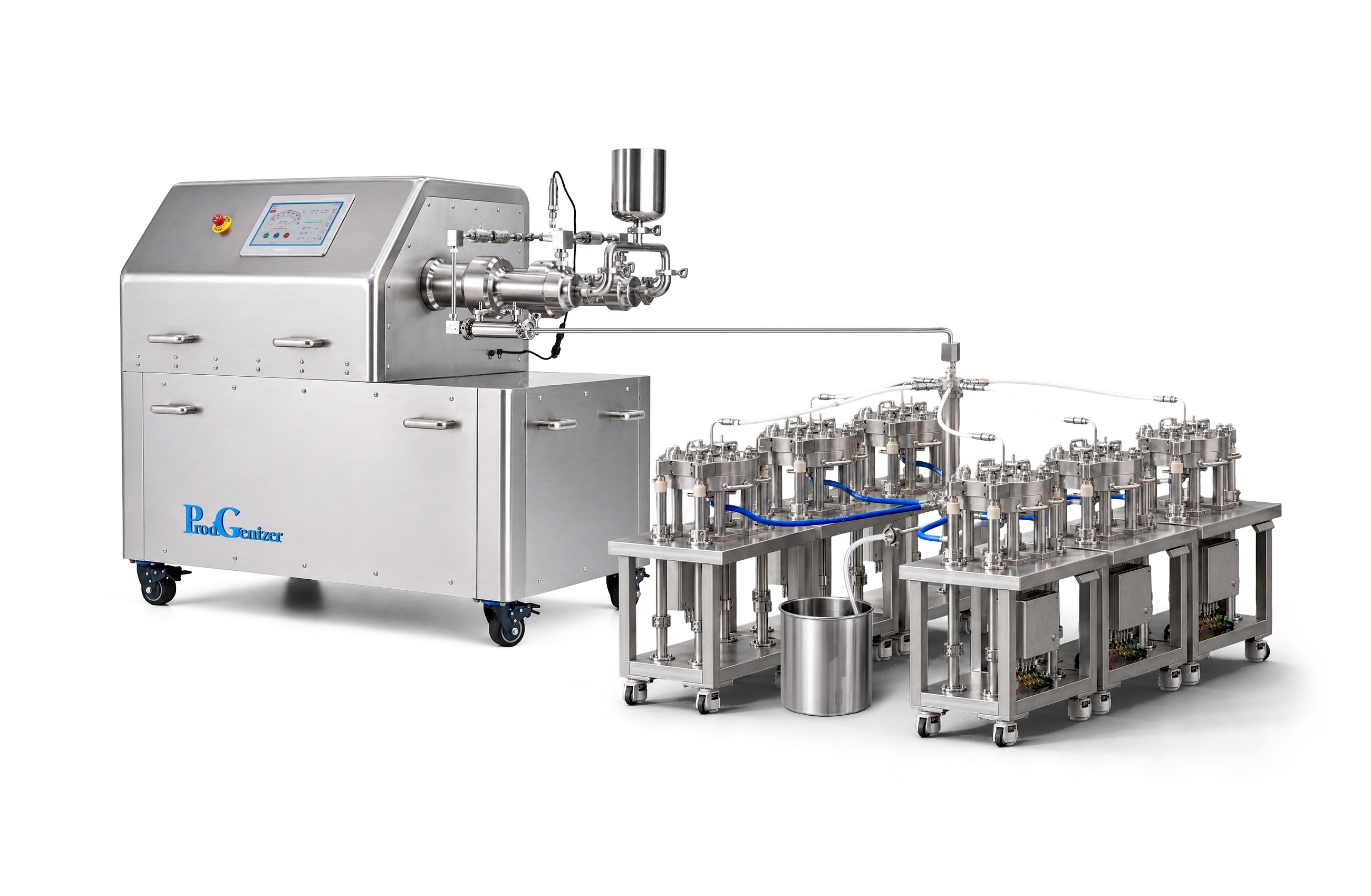

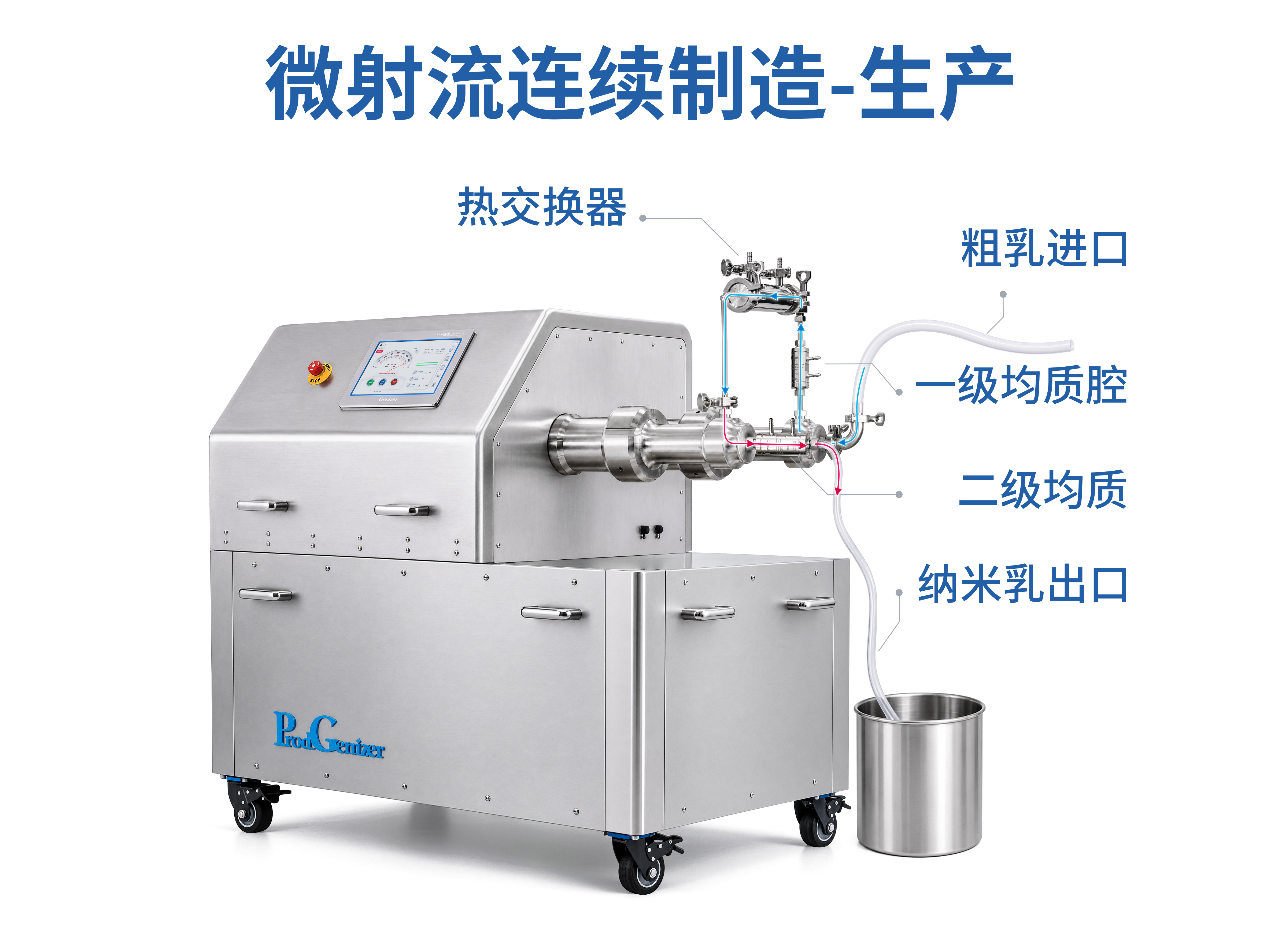

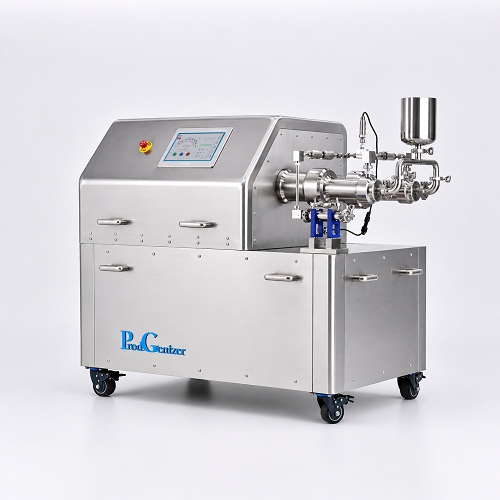

ProdGenizer生产型微射流高压均质机具有双泵装置的高压均质机，能够实现高达30,000磅/平方英寸的连续压力输出。
应用领域：
纳米分散体、纳米乳液以及纳米管、石墨烯等
细胞破裂
聚合物、脂质体及油中的微/纳米封装技术
固体分散体与悬浮液、解聚处理
性能：
节能效果显著：其能耗仅为最常见搅拌器的二分之一
体积小巧（一体化设计使得产品重量轻、尺寸小）
智能型（编程控制系统能够实现各种精细的功能）
静音运行（低噪音且能效极高）
强度高（在20,000磅/平方英寸的压力下，流量可达60升/小时）
符合CE标准及RoHs指令要求
| Specifications | |||||
| Catalog No. | ProdGenizer-5k | ProdGenizer-10k | ProdGenizer-15k | ProdGenizer-20k | ProdGenizer-30k |
| Flow rate | 300L/hr | 240L/hr | 180L/hr | 125L/hr | 100L/hr |
| Min. Sample | 1000mL | 800mL | 600mL | 400mL | 300mL |
| Max. Pressure | 5,000psi | 10,000psi | 15,000psi | 20,000psi | 30,000psi |
| Dimensions(cm) | 175 × 100 × 130 | 175 × 100 × 130 | 175 × 100 × 130 | 175 × 100 × 130 | 175 × 100 × 130 |
| Weight(kg) | 800 | 800 | 800 | 800 | 800 |
| Max. Temp. | 80ºC (176ºF) | ||||
| Power | 380 V - 480 V, 3-phase | ||||
| Cleaning | Flush to clean/CIP | ||||
| Application | Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration | ||||
| Features | Dual pump for continuous pressure, digital display of pressure | ||||
| Standard Features | |||||
| Parts | Y-type diamond interaction chamber with cooling option | ||||
| Control System | High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, settable volume control as low as 100 mL, display of flow rate and time, overload protection | ||||
| Pressure Gauge | Electric | ||||
| Inlet Type | Tri- clamp | ||||
| Outlet Type | Tri- clamp | ||||
| Inlet Reservoir | 3L SUS316 cylinder | ||||
| Product Material | 316L stainless steel, tungsten carbide, viton, teflon | ||||
| Material Standard | Sanitary grade, FDA, GMP | ||||
| Warranty | 1 year against any manufacturing defects | ||||
| Option Features | |||||
| Parts | High pressure extruders, homogenizing valves, heat exchanger | ||||
| Control System | Tradition mechanical control: speed, start, stop controls; FDA 21CFR Compliance; Explosion-Proof | ||||
| Detector | Pressure gauge, pressure transducer, temperature sensor | ||||
| Outlet Type | Tri- clamp or luer | ||||
| Inlet Reservoir | 1L, 2L Cylinder or Online; 1" or 2" Tri-Clamp | ||||
| Outlet Reservoir | 1L, 2L Cylinder or Online; 1" or 2" Tri-Clamp | ||||
| Cylinder | Titanium high pressure cylinder (resistant to strong acid and base) | ||||
