Product Details:

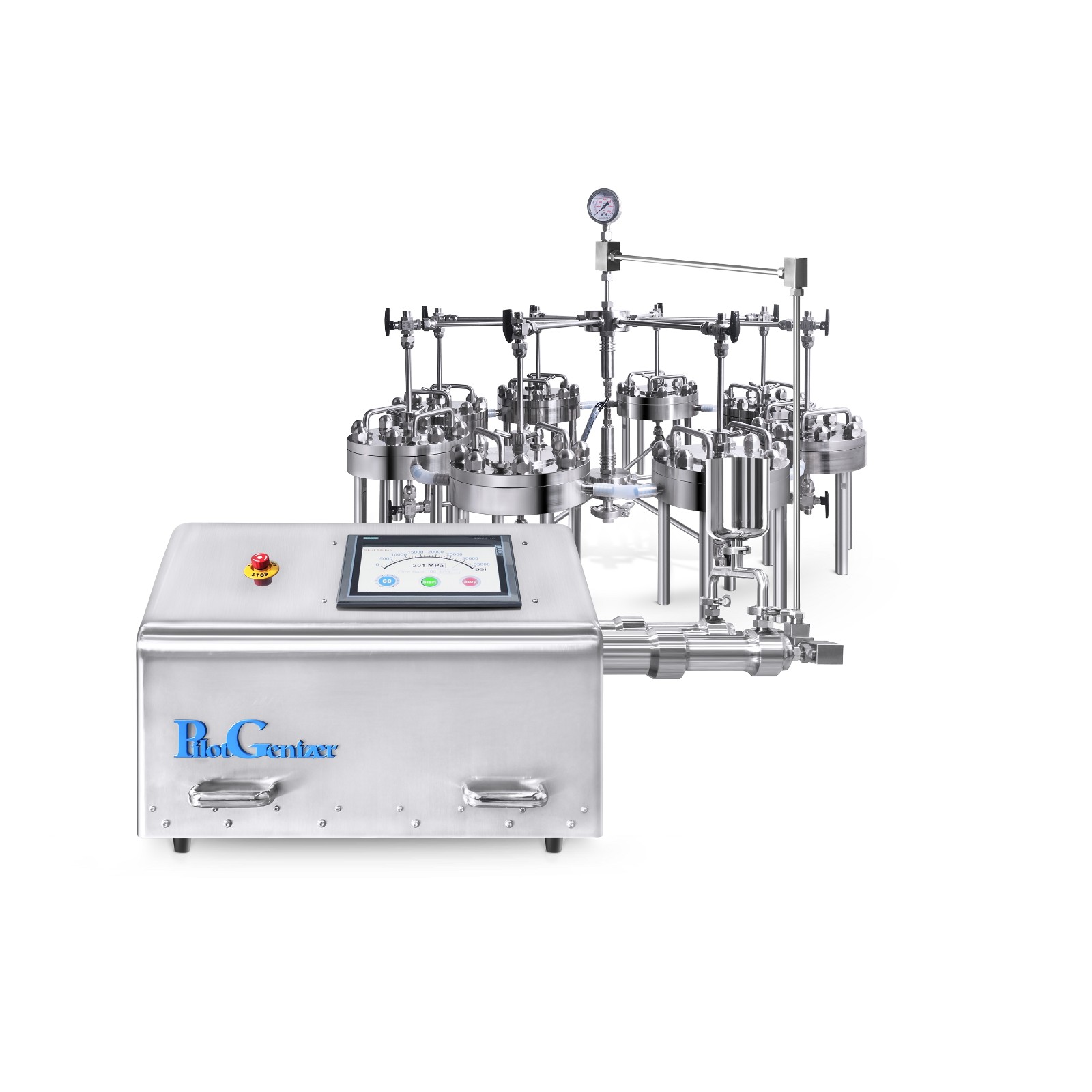

Product Name:Production Online Liposome Extrusion System
Product Model: Online Liposome Extruder System
Product Exhibitor: Genizer
Product Origin: United States
Product specification: GOE-8L-2 GOE-8L-4 GOE-8L-6 GOE-8L-8
Product features:
Genizer production-type liposome online extrusion system is professionally used in the production of drug-loaded liposomes. It consists of three parts: power system, extrusion system and detection system. The extrusion system is highly modular and is based on the parallel combination of Model 142 online extruder modules, and models such as GOE-8L- 2GOE-8L- 4GOE-8L-6GOE -8L-8 are commonly available. Genizer Online Liposome Extruders is high pressure homogenizer or pump online driven, from testing to manufacture production of liposome and lipopolyplex for drug and gene delivery; Temperature control is available.
Product introduction:
The production liposome extrusion system can be used to prepare liposomes in batches ranging from 1L to 1000L, with a particle size of 50 to 200nm. It can be used with an electric pump, and the operating pressure is from 1500-5000psi. It can be prepared for liposomal production of doxorubicin, paclitaxel, amphoteric B, doxorubicin, daunorubicin, cytarabine, vincristine, cisplatin, econazole nitrate. Easy to clean and sterilize, and complies with GMP and FDA pharmaceutical factory specifications.
Product parameters:
Liposome sample handling capacity of different specifications of liposome production systems is 1L-1000L, from sample handling capacity to1L,
optional liposome extrusion membrane 10nm, 30nm, 50nm, 80nm, 100nm, 200nm, 400nm, 800nm, 1000nm, etc.
Model. | GOE-8L-2 | GOE-8L-4 | GOE-8L-6 | GOE-8L-8 | Custom Disk |
sample volume | 16L | 32L | 48L | 64L | Cooling as required |
Jacket | type | ||||
size | 30cm×25cm×25cm | 30cm×25cm×25cm | 30cm×25cm×25cm | 30cm×25cm×25cm | as required |
weight | 26kg | 58kg | 78kg | 104kg | Down |
to sample size as required | 1L | 2L | 3L | 4L | Application |
of | liposome preparations as required from research and development to large-scale | ||||
production to pressure | 3,000 psi-6,000 psi | ||||
Up to | 80ºC (176ºF) | ||||
Power source | Sanitary high-pressure pumps or high-pressure homogenizers in parallel | ||||
Filtration membrane | polycarbonate filtration membrane | ||||
cleaning | online flushing/CIP | ||||
Disinfection | Autoclave | ||||
Product characteristics:
Parts | 1)Liposome Online Extruder |
filter support plates | with pagoda-type inlet and outlet connectors, jacketed the filter support plates |
Feed | 3/8"high-pressure joint |
discharge | 3/8"high-pressure joint |
handle | Filter membrane with handle |
100nmpolycarbonate filter membrane | |
compatibility | Some parts are compatible withLipex™ |
Product material | 316Lstainless steel,fluorine rubber |
Material grade | Pharmaceutical grade;Comply withFDA, GMPhygiene standards |
Warranty period | Provide a standard 1-year warranty for any production defects |
Options:
sensors | 10,000 psisanitary pressure gauge with adapter,pressure sensor,temperature sensor |
Power source | Sanitary high-pressure plunger pump or manual pump |
Feed connection type | Quick connect or Luer connection |
Discharge connection type | Quick connect or Luer connection |
Filter membrane | pore size optional: 30nm, 50nm, 80nm, 100nm, 200nm, 400nm, 800nm, 1μm, 2μm, 5μm, 10μm, 20μm DIA. 150mm, 293mm |
Multimodal extrusion tray system | Multiple extruders are connected in parallel or in series |
