Product Details:
Product: NanoGenzier High-pressure Homogenizer
English Name: NanoGenzier High Pressure Homogenizer
Other Names: NanoGenzier Microfluidizer, NanoGenzier High-Pressure Microjet Homogenizer, NanoGenzier Microjet Nanodispersion
Product Model: NanoGenizer-II
Product Brand: Genizer
Product Origin: U.S.
Operation Video Demonstration: http://v.youku.com/v_show/id_XMTgyNTk2ODYwOA

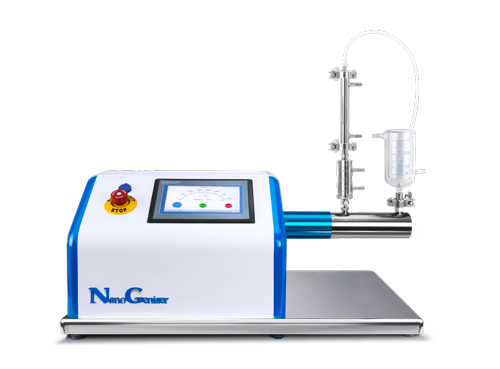

NanoGenizer Microjet High-Pressure Homogenizer

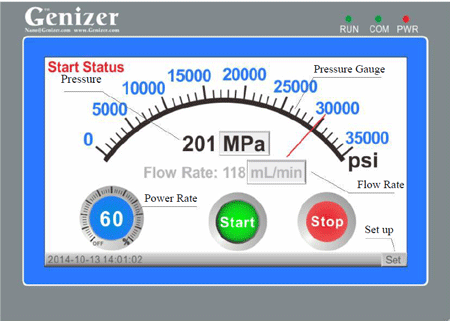

PLC control interface of experimental microjet high-pressure homogenizer
Characteristics of core product parameters of microjet diamond interactive cavity
1 Core technology: The application ofthe second-generation microjet diamond interactive chamberallows the Genizer high-pressure homogenizer to combine the advantages of microjet, impinging stream and traditional high-pressure homogenization technology.
2 Homogenization pressure: The Genizer 30K can reach a design pressure of 30,000 psi, and the Genizer 20K can reach a design pressure of 20,000 psi. The touch screen controls the pressure and operation.
3 Homogeneous flow rate: Up to 100ml/min (varies with pressure and material viscosity)
4 As small as sample size: 5ml, suitable for expensive materials. You can set your own sample intake volume, so you don't suck and waste it!
5 Low residual volume: About 1ml. The high-precision high-pressure cylinder pipeline design can control the residual volume to about1mlwithout air blowing.
6 Sanitary grade: Contact materials are all GMP, FDA-approved 316L and 17-4PH stainless steel, tungsten carbide, zirconium oxide and polymer polyethylene.
7 Temperature control: Sanitary heat exchangers can be equipped to effectively reduce material temperature and ensure activity.
8 Safety: The whole machine does not involve high-intensity air pressure and oil pressure, and is equipped with intelligent overload protection.
9 Modularity: Y and Z-type diamond interactive chambers can be optional, and syringes can be directly used for material import and export or stainless steel hoppers can be switched.
10 Power supply: Applicable to 220V/50Hz, 1.8Kww, CE and ROHS standard certification.
11 size weight: 80*36*40cm/45kg, the integrated design is flexible and light.
Examples of application areas:
More information:
2. Genizer Microjet Diamond Interactive Cavity Use Guide.
