Product Details:
Product name: Manual high-pressure homogenizer
Other names: temperature-controlled cell disruptor, microjet nanodispersion instrument
Product model: Handgenizer
Product brand: Genizer
Product specification: HG-1.0
Video demonstration:http://v.youku.com/v_show/id_XOTY2NDQ5MDI0

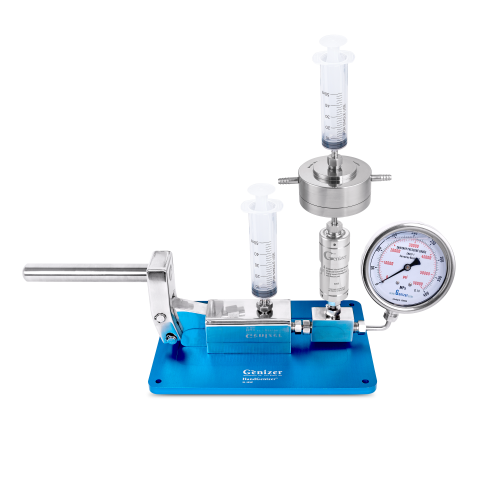

Figure Manual microjet homogenizer + online liposome extruder combination
product characteristics
Volume: Integrated design achieves light weight, small size, portable
flow rate: 20ml/ min
Small sample volume: 1ml
Pressure: 0- 28000psi
Standard: RoHS standard Passed
brief introduction:
Manual high-pressure homogenizer is used for fat emulsions, liposomes, nanosuspensions, microemulsions, laboratory preparation of lipid microspheres, nanoemulsions, dairy products, cell disruption testing, up to a working pressure of 30000Psi/2200 Bar. The media in contact with all parts is FDA-approved sanitary materials including 316L stainless steel, 17-4PH stainless steel, titanium alloy, tungsten carbide, polytetrafluoroethylene, and polyethylene.
Product functions:
1. Fat emulsion, liposomes are selected with diamond interactive homogenization chamber Y type (temperature control type)
2. Cell disruption Select diamond interactive homogenization chamber Z-type (temperature control type)
Note:It is suitable for testing with low particle size requirements and low product viscosity. It cannot replace the electric homogenizer
